PPR Female Elbow: Technical Specifications and Features

Visão geral do produto

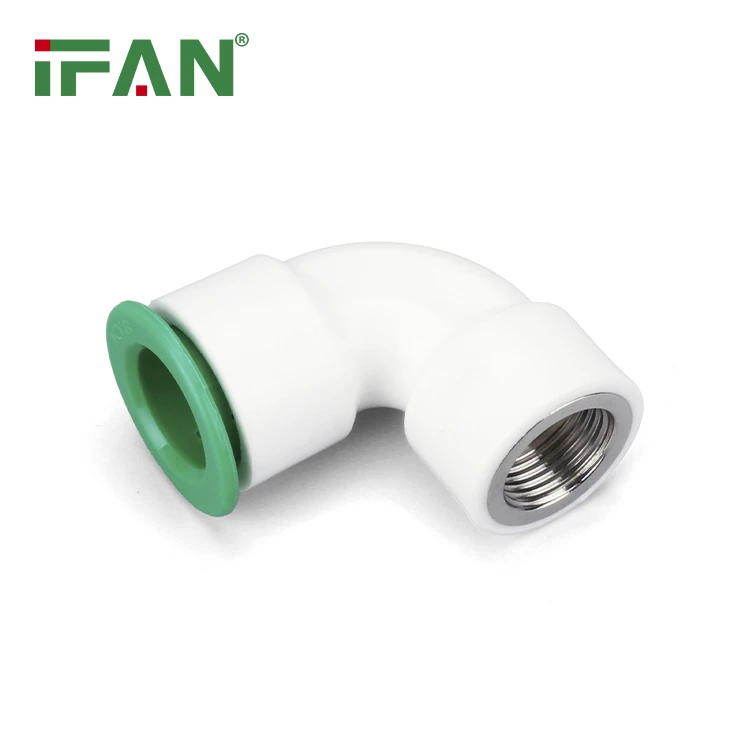

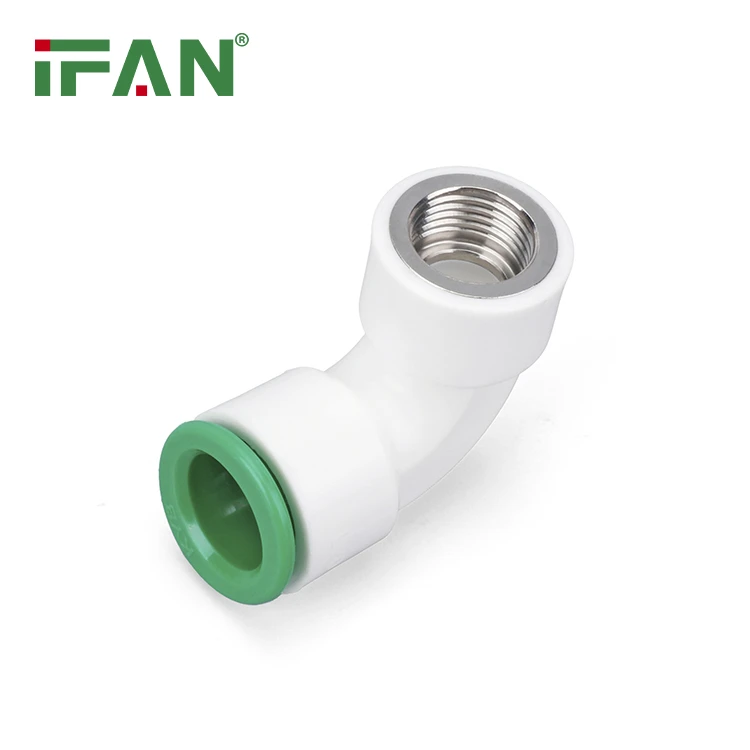

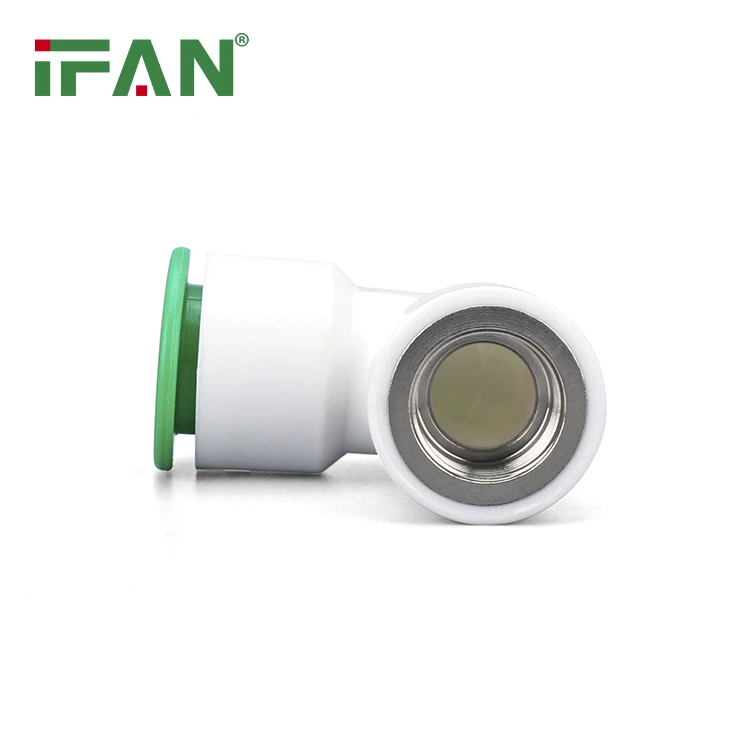

PPR female elbows serve as crucial transition fittings that connect PPR piping systems with male-threaded components at precise 90° or 45° angles. These hybrid fittings uniquely combine a PPR socket end for permanent thermal fusion welding with a female threaded connection on the opposite end, typically constructed from dezincification-resistant brass or high-strength polymer. This dual-connection design bridges plastic piping systems with traditional threaded components while maintaining all the advantages of PPR material including corrosion resistance, thermal stability, and hydraulic efficiency.

Composição do material

The PPR female elbow body consists of high-grade polypropylene random copolymer that offers excellent chemical resistance and long-term durability. The threaded portion incorporates either dezincification-resistant brass (DZR) meeting lead-free drinking water standards or engineered polymer for specialized chemical applications. Critical sealing surfaces are precision-machined to ensure leak-proof connections, with optional EPDM or FKM O-rings available for enhanced sealing performance. All materials comply with international potable water standards including NSF/ANSI 61, WRAS, and KTW certifications.

Principais recursos e benefícios

PPR female elbows provide numerous technical and practical advantages for modern piping systems. The fusion-welded PPR socket creates permanent, leak-proof joints stronger than the pipe itself, while the female threaded connection allows for convenient disassembly when servicing downstream components. These fittings maintain the full PN20 pressure rating (20 bar at 20°C) of PPR systems and operate reliably across a temperature range of -10°C to +95°C, with short-term tolerance to 110°C.

The corrosion-resistant construction makes these elbows ideal for aggressive water conditions and chemical applications where metal fittings would degrade. Installation is simplified through the use of standard PPR welding equipment, with no special tools required for the threaded connection beyond appropriate sealants. The lightweight design (approximately 1/5 the weight of comparable metal fittings) reduces handling challenges and support requirements.

Technical Specifications

Available in sizes from 20mm (½”) to 63mm (2″), PPR female elbows come in standard 90° configurations with 45° versions for specialized flow direction requirements. Thread options include BSP (ISO 228) and NPT (ASME B1.20.1) standards to accommodate global piping systems. Pressure testing verifies performance at 30 bar (1.5×PN) for one hour without failure, while torque resistance ratings ensure durable threaded connections (30 Nm for sizes ≤32mm, 45 Nm for larger sizes).

Material certifications include ISO 15874 for PPR components and relevant threading standards. Hydrostatic testing confirms zero leakage at rated pressures, and thermal cycling tests validate performance across the entire operating temperature range. Long-term creep resistance testing demonstrates maintained integrity after of continuous service.

Diretrizes de instalação

Proper installation begins with preparing the PPR pipe end with a square cut and thorough deburring. Clean both the pipe end and socket interior with isopropyl alcohol to remove contaminants. For the fusion weld, heat both components simultaneously to 260°C (±5°C) for the appropriate duration (5 seconds for 20mm up to 1 second per mm diameter for larger sizes), then join swiftly without rotation and hold firmly during the 30-second initial cooling period.

For the threaded connection, apply appropriate sealant – Teflon tape (wrapped clockwise) or liquid thread sealant for metal threads, or sealing washers for plastic-to-plastic connections. Hand-tighten until resistance is felt, then complete with a wrench (¼ turn for sizes ≤32mm, ½ turn for larger sizes). Always support both sides of the fitting during installation to prevent stress on the joint.

Garantia de Qualidade

Manufacturers implement rigorous quality control measures including 100% dimensional verification of critical interfaces and ultrasonic testing of brass insert bonding integrity. Performance testing includes cyclic pressure testing (10,000 cycles at 1.25×PN), thermal shock resistance evaluation, and thread pull-out strength verification.

Certification documentation includes material test reports for both PPR and brass components, pressure test certificates, and compliance statements for drinking water standards. Production batches are laser-marked for complete traceability from raw material to finished product.

Aplicações

PPR female elbows serve critical functions across multiple industries. In residential plumbing, they connect water heaters, shower valves, and other fixtures to PPR distribution systems. HVAC applications utilize these fittings for pump discharge lines, boiler connections, and heat exchanger interfaces.

Industrial installations benefit from their chemical resistance in process piping, chemical dosing systems, and compressed air lines. Irrigation systems employ these elbows at filter assemblies and control valve connections. The fittings are equally valuable in fire protection systems for sprinkler valve connections and pump test points.

Maintenance Considerations

While the fusion-welded joint requires no maintenance, the threaded connection benefits from periodic inspection. Annual checks should verify thread condition and proper sealing, with more frequent monitoring in high-vibration or thermal cycling applications. For metal threads, reapplying thread sealant during component changes maintains leak-proof performance.

Common issues include thread leaks (addressed by proper sealant reapplication) and fusion joint failures (requiring cutting and re-welding). With proper installation and minimal maintenance, these fittings typically exceed of reliable service.

Vantagens ambientais

PPR female elbows support sustainable building practices through multiple features. The PPR material is fully recyclable (resin identification code 5), while lead-free brass components meet stringent drinking water safety requirements. Manufacturing consumes significantly less energy than metal fitting production, and the extended service life reduces material replacement frequency.

The fittings contribute to green building certification points in programs like LEED through their material sustainability, energy efficiency in fluid transport, and compatibility with environmentally-conscious system designs.

Ordering Information

Standard configurations are available for immediate shipment in sizes from 20mm to 63mm, with 90° as standard and 45° elbows typically requiring 3-5 day lead time. Thread options include BSP parallel and tapered, NPT, and metric threads.

Custom solutions can be developed for special applications, including alternative materials (stainless steel inserts), modified socket depths, or unique thread forms. Bulk packaging options include individual polybags for corrosion protection or eco-friendly bulk containers for large projects.

Why Choose PPR Female Elbows

These fittings provide unmatched versatility in system design by seamlessly integrating PPR piping with threaded components. The combination of permanent fusion joints and serviceable threaded connections solves one of the primary challenges in plastic piping systems. Cost-effectiveness comes from reduced adapter requirements, lower installation labor, and minimal maintenance needs compared to all-metal systems.

With proven performance across residential, commercial, and industrial applications, PPR female elbows deliver reliable, long-term solutions while meeting increasingly stringent environmental and safety standards for modern piping systems.
