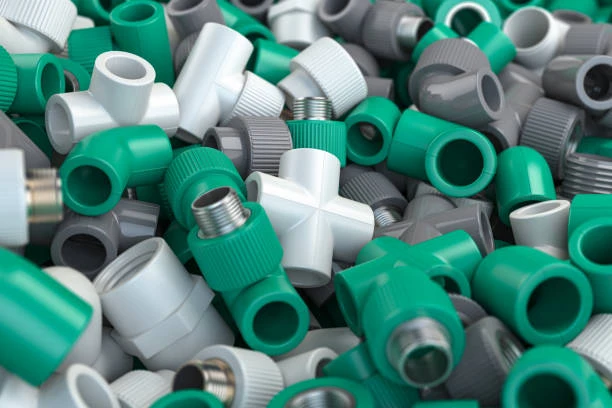

What Are PPR Elbow Fittings?
PPR elbow fittings are connectors used to change the direction of water flow in PPR (Polypropylene Random Copolymer) piping systems. These fittings are typically used at 90° or 45° angles. They allow piping systems to adapt to corners and direction shifts without compromising water pressure or integrity.
Made from the same high-quality material as PPR pipes, these elbow fittings are durable, corrosion-resistant, and capable of withstanding both high temperatures and pressure. Most top-grade PPR elbows follow international standards such as ISO 15874, DIN 8077/8078, and EN ISO 21003, ensuring reliable performance and compatibility.
Types of PPR Elbow Fittings
There are several types of PPR elbow fittings, each serving a specific purpose:
- 90° PPR Elbow: Changes the pipe direction at a right angle. It’s the most common elbow in residential plumbing.
- 45° PPR Elbow: Provides a softer angle shift, used where gradual flow change is needed.
- Female Threaded Elbow (Codo Hembra): Has a threaded end for connecting to metal components like valves or faucets.
- Male Threaded Elbow: Includes an external thread, often used for joining with metal pipes or fittings.
- Reducing Elbow: Joins two pipes of different diameters at an angle.
Each type of elbow helps optimize system layout, avoid stress points, and improve the longevity of plumbing networks.
Common Applications in Plumbing Systems
PPR elbow fittings are widely used in various applications:
- Residential water distribution: Connecting kitchen, bathroom, and laundry pipelines
- Underfloor heating systems: Managing flow direction around walls and obstacles
- Industrial fluid transfer: Supporting piping turns in chemical or pharmaceutical plants
- Agricultural irrigation: Directing water lines across uneven fields
- HVAC systems: Guiding hot or cold water through complex building layouts
These fittings are particularly useful in confined or tight spaces where pipes cannot be laid in straight lines.
Durability and Technical Advantages
Top-quality PPR elbow fittings have exceptional durability and chemical resistance. They can handle:
- High pressure: Up to 20 bar (PN20 rating)
- High temperature: Up to 95°C continuous operation
- Corrosion and scale resistance: No rust, no buildup
- Long lifespan: Up to under normal conditions
They also maintain system hygiene by being non-toxic, making them ideal for potable water supply. Their low thermal conductivity minimizes heat loss, while their low noise performance enhances user comfort.
Installation Tips for Elbow Fittings
For best results, follow these key installation guidelines:
- Use heat fusion welding at 260°C for secure joints
- Ensure correct alignment during joining to prevent leaks
- Let joints cool naturally without moving them
- Avoid excessive tension or sharp bends near fittings
- Space pipe supports evenly to prevent stress on elbows
Always use matching PPR pipes and elbows from the same brand to ensure chemical and dimensional compatibility.
Pricing and Cost Factors
The cost of PPR elbow fittings depends on the type, size, brand, and certification level. Average price ranges:
- 90° standard elbow (20mm–32mm): $0.10 to $0.30 each
- Threaded elbows (female/male): $0.40 to $1.00 each
- Reducing elbows: $0.25 to $0.60 each
Certified products often cost slightly more but offer superior performance and warranty. Buying from a reputable manufacturer ensures better quality and consistency, especially for large-scale plumbing projects.
How to Select High-Quality Elbow Fittings
When choosing PPR elbows, always verify the following:
- Certification: Look for ISO, DIN, or CE markings
- Raw materials: Prefer 100% virgin PPR for long-term use
- Precision molding: Smooth internal surfaces reduce pressure loss
- Batch and pressure ratings: Should be clearly printed on the part
- Brand reputation: Choose suppliers with proven plumbing expertise
It’s wise to check product catalogs or consult a supplier’s technical team before placing bulk orders, especially for customized systems.
Final Thoughts
Top-quality PPR elbow fittings play a critical role in any modern plumbing setup. Whether you’re designing a home water system or an industrial plant, the correct elbow type ensures efficiency, flow control, and reliability. With the right choice, you reduce leaks, enhance water direction, and extend the life of your piping system.
Always select fittings that meet international standards, suit your system pressure needs, and come from trusted brands. Investing in certified, durable PPR elbows ensures smooth installations and long-term peace of mind.
IFAN Product Standards Overview
IFAN manufactures products in full compliance with international and regional standards to meet diverse market requirements. Our product range adheres to specifications such as ISO 15874, EN 15874, ASTM F2389, DIN 8077/8078, GB/T 18742, and NBR 15884 for PPR systems. We also follow ISO 15494, EN ISO 15494, GB/T 19472, and NBR 15494 for industrial piping applications. Standards like ASTM D1785 SCH40/SCH80, DIN 8061/8062, ISO 1452, AS/NZS 1477, and NSF/ANSI 14 apply to our PVC systems. For HDPE and gas pipes, we comply with ISO 4437, EN 12201, ASTM D2513, ASTM D3035, and GB/T 13663. Stainless steel and composite piping products meet ASTM A312, ISO 10380, ASTM F1974, and ISO 21003. Other supported standards include CSA B137, BS 7291, JIS K6741, and TIS 17-2532/1131-2535. IFAN ensures reliable quality and compatibility by meeting these globally recognized specifications.
